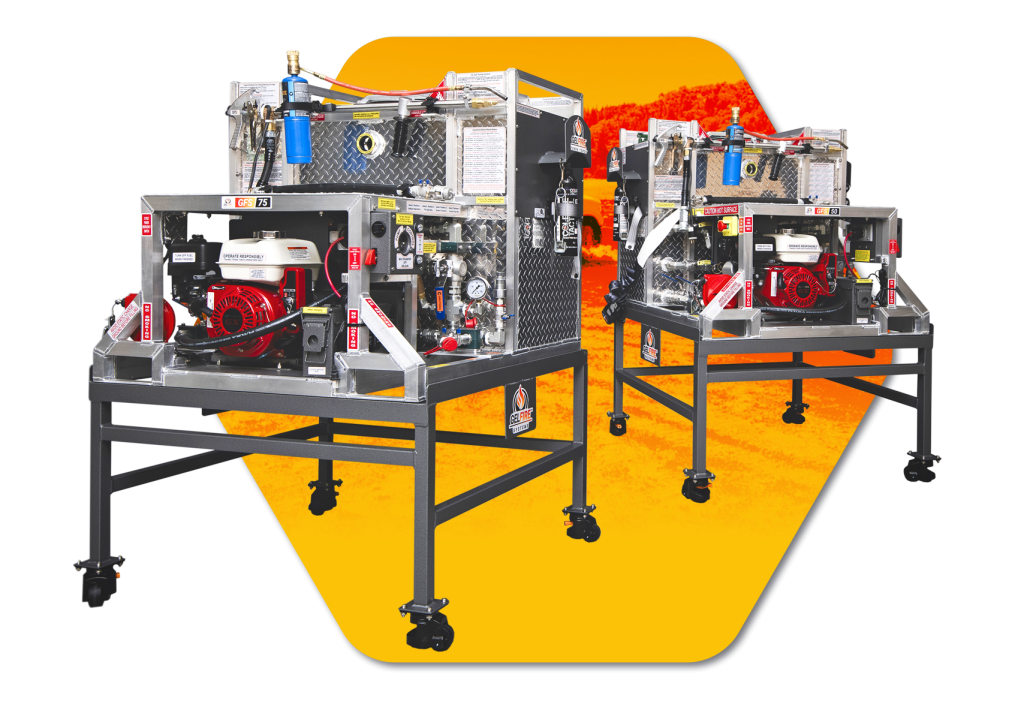

GelFire® Terra Torch® GFS 50/75

The GelFire® Terra Torch® GFS 50/75 is engineered for durability, safety, and superior field performance. Featuring an all-aluminum tank and frame specifically designed for gasoline-based operations, the GFS 50/75 delivers a lightweight, yet exceptionally rugged platform built to withstand years of demanding service.

The fuel tank incorporates multiple safety and performance features, including integrated spill containment, an internal fuel and gelling agent mixing manifold educator system, and a Betts® 10-inch manway hatch with built-in rollover spill protection. Additional safety provisions include normal pressure/vacuum venting, emergency venting, and a 2-inch Protectoseal® safety fill cap with an integrated flame arrester for safe fuel handling and filling operations. A heavy-duty rollover cage provides additional protection in the event of an overturn.

The all-aluminum power unit frame is designed to protect critical components, including the engine, pump, and plumbing system, while maintaining a lightweight and corrosion-resistant design.

Standard equipment includes a Honda® electric-start engine with a 12V battery system and a heavy-duty brass gear pump equipped with a 12V electromagnetic clutch. This combination provides instant pressure, improved operator safety, and dependable ignition performance in demanding field conditions.

A dedicated GelGun storage rack securely holds the applicator during transport and storage while keeping it readily accessible for rapid deployment in the field.

Key Features:

  • Lightweight, all-aluminum tank and frame construction
  • Integrated fuel and gelling agent mixing manifold educator system
  • Betts® 10-inch manway hatch with rollover spill protection
  • Protectoseal® safety fill cap with flame arrester
  • Normal and emergency tank venting systems
  • Heavy-duty rollover protection cage
  • Honda® electric-start engine with 12V battery system
  • Brass gear pump with 12V electromagnetic clutch
  • Protected motor, pump, and plumbing assembly
  • Secure, easy-access GelGun storage rack
  • Built for years of dependable service in demanding field environments
REQUEST INFO

Plumbing System

The GelFire® Terra Torch® features a versatile seven-valve plumbing system designed to maximize operational flexibility and performance. The system allows operators to efficiently perform fuel and gelling agent mixing, recirculation, GelGun operation, tank drafting, fuel transfer, and operation from an auxiliary fuel source.

For enhanced safety and reliability, the plumbing system incorporates a pressure relief bypass valve and an integrated pressure gauge, enabling precise pressure adjustment and monitoring for optimum ignition performance. This robust design provides operators with the control and versatility needed to adapt to a wide range of field conditions and operational requirements.

Features

  • Seven-valve multifunction plumbing system
  • Fuel and gelling agent mixing and recirculation capability
  • GelGun operation control
  • Tank drafting functionality
  • Auxiliary fuel source connection
  • Fuel transfer capability
  • Pressure relief bypass valve for system protection
  • Integrated pressure gauge for accurate pressure monitoring
  • Designed for reliable performance in demanding field environments

Pump Control System

The GelFire® Terra Torch® features a 12V interchangeable control box designed to provide safe, convenient, and reliable operation of the pumping system. The control box allows operators to manage fueling, fuel and gelling agent mixing, and GelGun operation from a centralized control location, improving both efficiency and ease of use in the field.

For enhanced operator safety, the system includes a dedicated 12V emergency shutoff switch, allowing the pump system to be immediately disabled when required. The interchangeable design also simplifies maintenance and replacement, minimizing downtime and ensuring dependable performance.

Features

  • 12V interchangeable control box
  • Centralized controls for fueling operations
  • Fuel and gelling agent mixing controls
  • GelGun operation controls
  • Emergency 12V pump shutoff switch
  • Easy maintenance and component replacement
  • Reliable performance in demanding field conditions

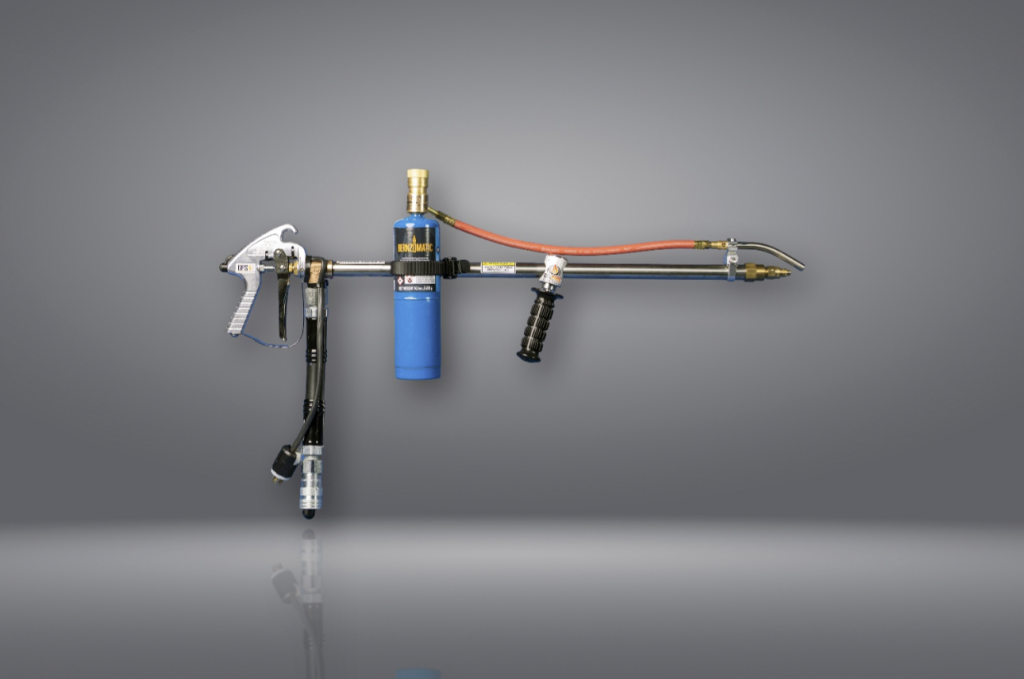

GelGun

The GelFire Systems® GelGun is a unique 12V, on-demand ignition applicator designed to maximize both safety and performance. When activated, the GelGun automatically engages the pump system, providing instant pressure and precise operator control while minimizing unnecessary fuel circulation.

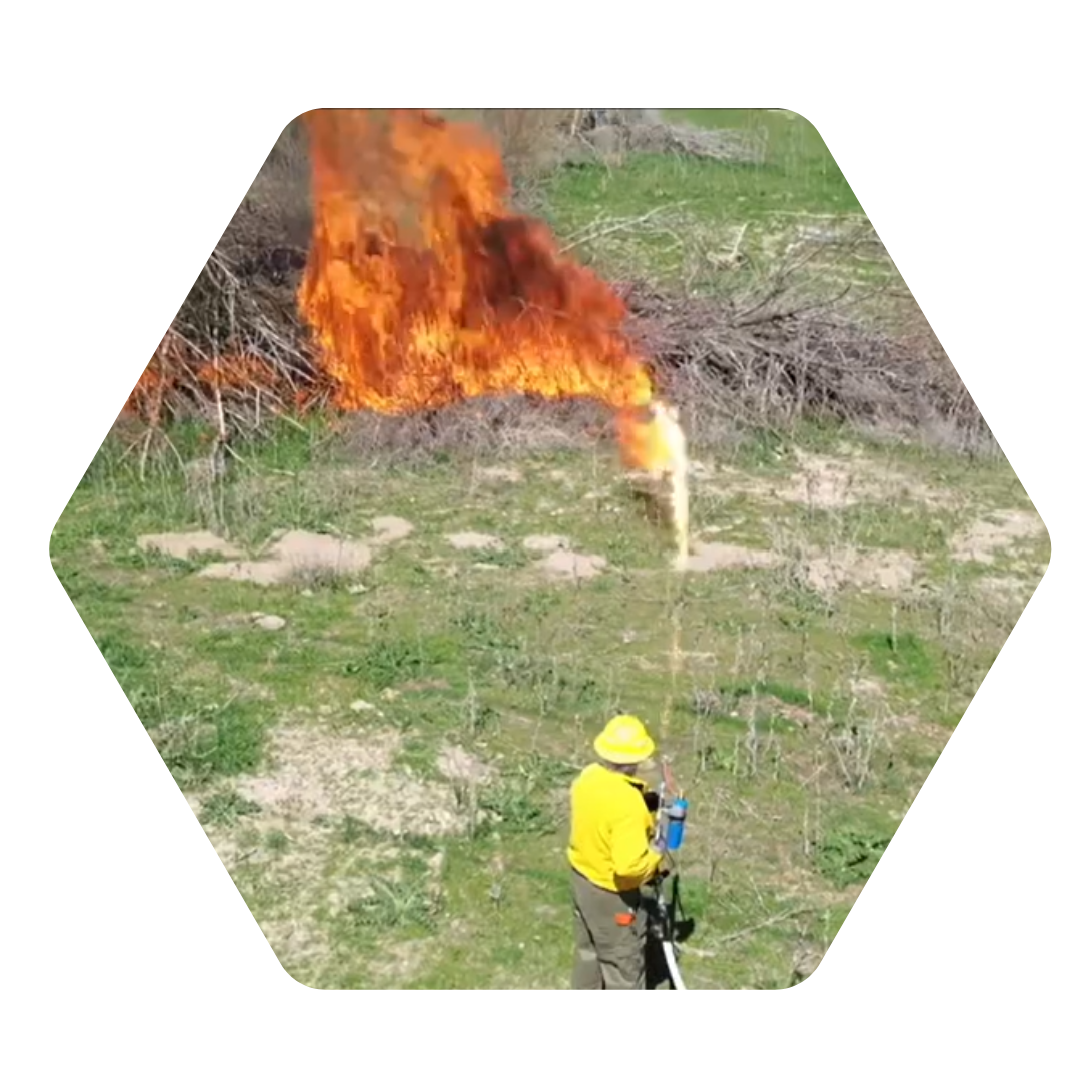

Engineered for reliable field performance, the GelGun projects ignited gelled fuel streams in excess of 50 feet, allowing operators to safely and accurately place ignition where it is needed. Its ergonomic design and on-demand operation make it an effective tool for prescribed fire, blacklining, fuels reduction, and vegetation management applications.

Features

  • 12V on-demand pump activation
  • Enhanced operator safety and control
  • Projects ignited gelled fuel over 50 feet
  • Precise ignition placement
  • Instant pressure for rapid deployment
  • Durable design for demanding field conditions
  • Ideal for prescribed fire and wildland fire operations

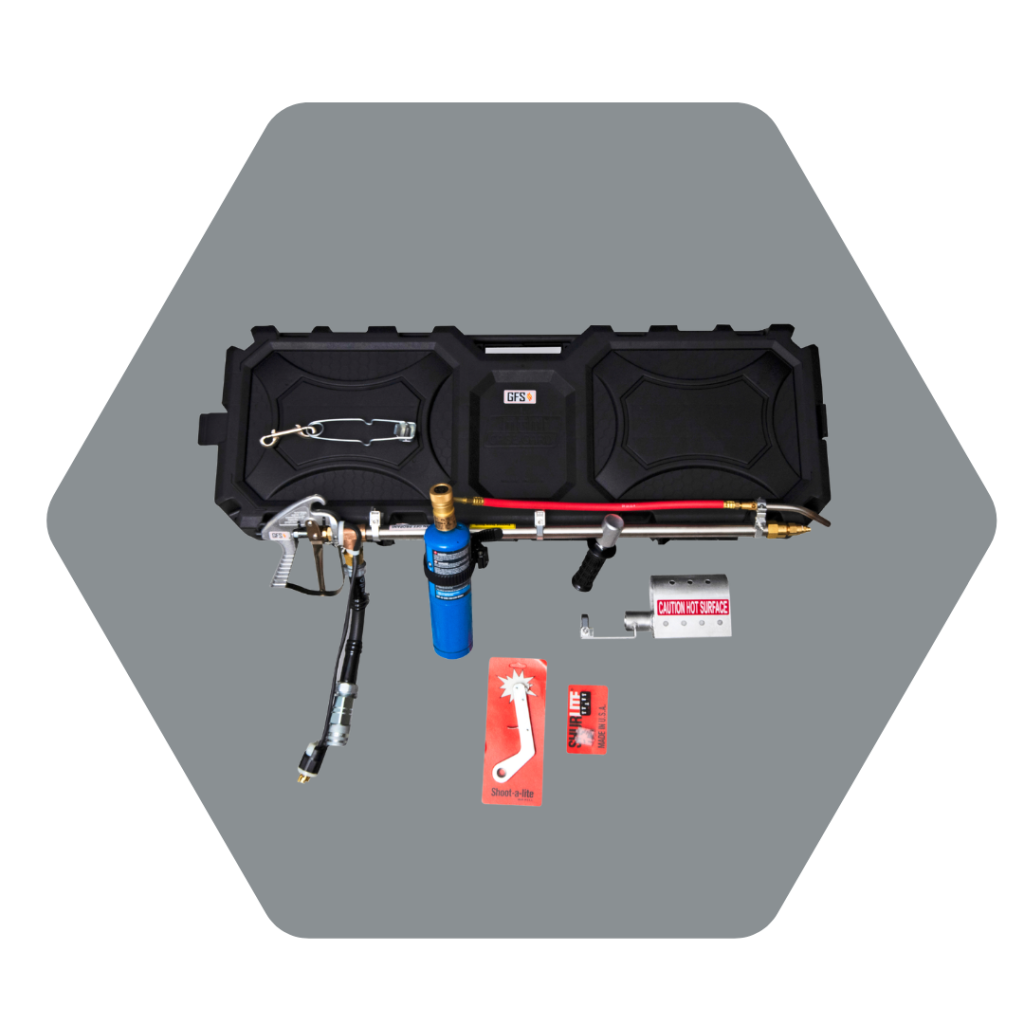

GelGun Accessories

A variety of GelGun accessories are available to enhance performance, convenience, and operational flexibility in the field. Whether outfitting a new system or expanding existing capabilities, these accessories help operators customize their equipment to meet specific mission requirements.
Available accessories include protective storage solutions, replacement components, and performance-enhancing options designed for demanding field environments.

Available Accessories

  • Protective GelGun carrying and storage case
  • Wind shield for propane ignition tip
  • Propane strikers
  • Multiple nozzle and tip size options
  • Shoulder strap attachment kit
  • Additional GelGun applicator for backup or multi-operator use
  • Replacement and service components
  • Wireless pump control system (coming soon)



These accessories help ensure your GelFire® Terra Torch® system remains versatile, efficient, and ready for deployment whenever and wherever it is needed.

  •

GelHose

The GelFire® Terra Torch® GelHose system is designed for durability, safety, and ease of operation in demanding field environments. Quick-connect flush-face (dry break) fittings allow for fast hose connection and disconnection while minimizing spills, drips, and fuel loss during transport, storage, and deployment.
For added protection and extended service life, the grounded fuel hose and integrated 12V wiring system are enclosed within a durable fire hose jacket. This design helps protect critical components from abrasion, wear, and field damage while improving overall hose longevity.
Dual hose racks provide a convenient solution for transporting, storing, and securing the GelHose® during operation and transit, helping keep equipment organized and ready for rapid deployment.

Features

  • Quick-connect flush-face (dry break) fittings
  • Spill-resistant, no-drip hose connections
  • Grounded fuel hose for enhanced safety
  • Integrated 12V wiring system
  • Protective fire hose outer jacket for increased durability
  • Extended hose service life and reduced wear
  • Dual hose racks for transport, storage, and operation
  • Designed for reliable performance in demanding field conditions

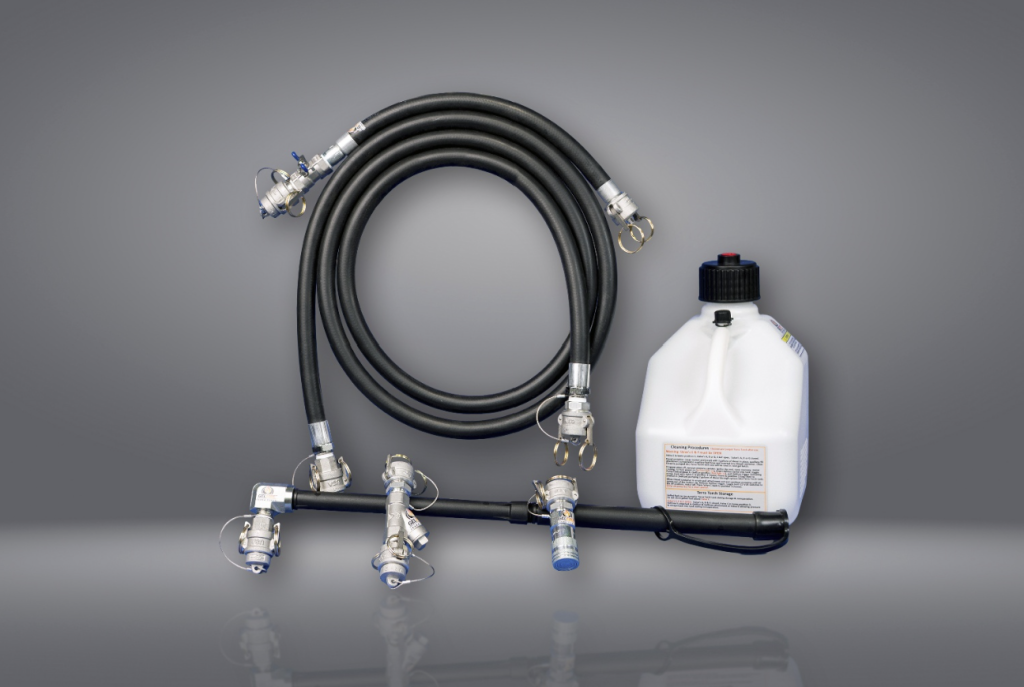

Auxiliary Fuel Transfer Accessories

The GelFire® Terra Torch® can be equipped with a variety of auxiliary fuel transfer accessories designed to simplify fuel handling and improve operational efficiency in the field. These accessories allow operators to safely transfer fuel from external sources directly into the system when refueling or supporting extended operations.
Compatible with a wide range of fuel containers, the auxiliary transfer system provides flexibility for remote operations where traditional fueling methods may be impractical.

Available Applications

  • Fuel transfer from jerry cans
  • Fuel transfer from auxiliary fuel tanks
  • Fuel transfer from fuel drums and bulk containers
  • Remote fueling operations
  • Extended-duration field deployments

Benefits

  • Faster and more efficient refueling
  • Reduced manual fuel handling
  • Increased operational flexibility
  • Compatible with multiple fuel source configurations
  • Designed for reliable field use

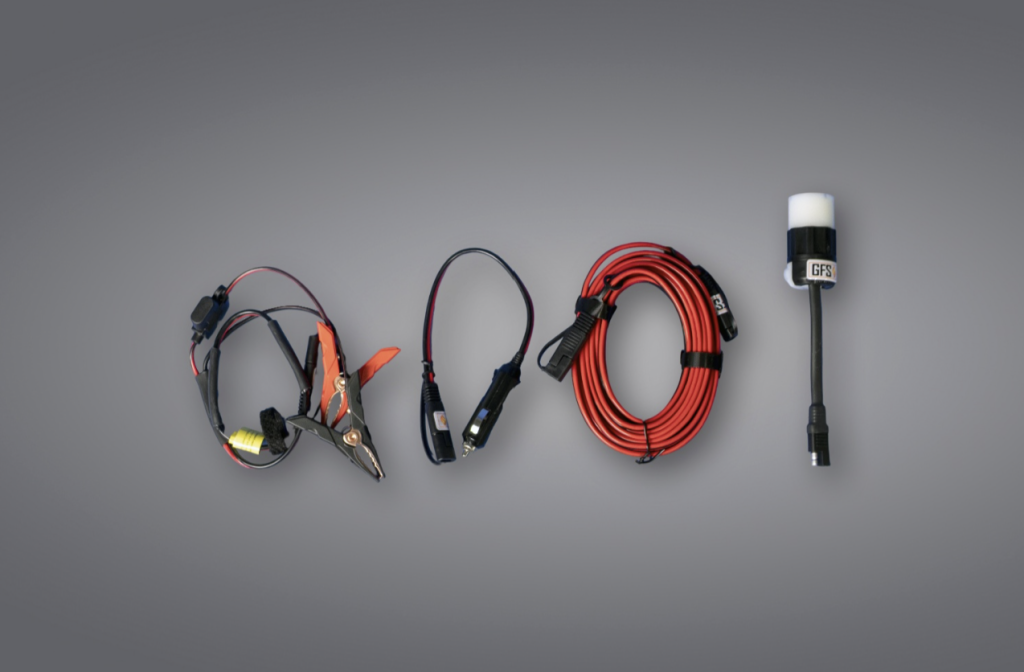

12V Battery Bypass Accessories

12V battery bypass accessories are included to provide power directly to the Terra Torch® pump control system when the onboard battery is unavailable, discharged, or requires service. These accessories allow operators to connect an external 12V power source, ensuring continued operation while minimizing downtime in the field.
Designed for reliability and convenience, the battery bypass system provides an effective backup power solution for extended operations, remote deployments, and emergency situations.

Features

  • Provides external 12V power to the pump control box
  • Bypasses the onboard Terra Torch® battery when needed
  • Ideal for backup and emergency operation
  • Supports extended field deployments
  • Quick and easy connection to external power sources
  • Minimize operational downtime
  • Reliable performance in demanding environments

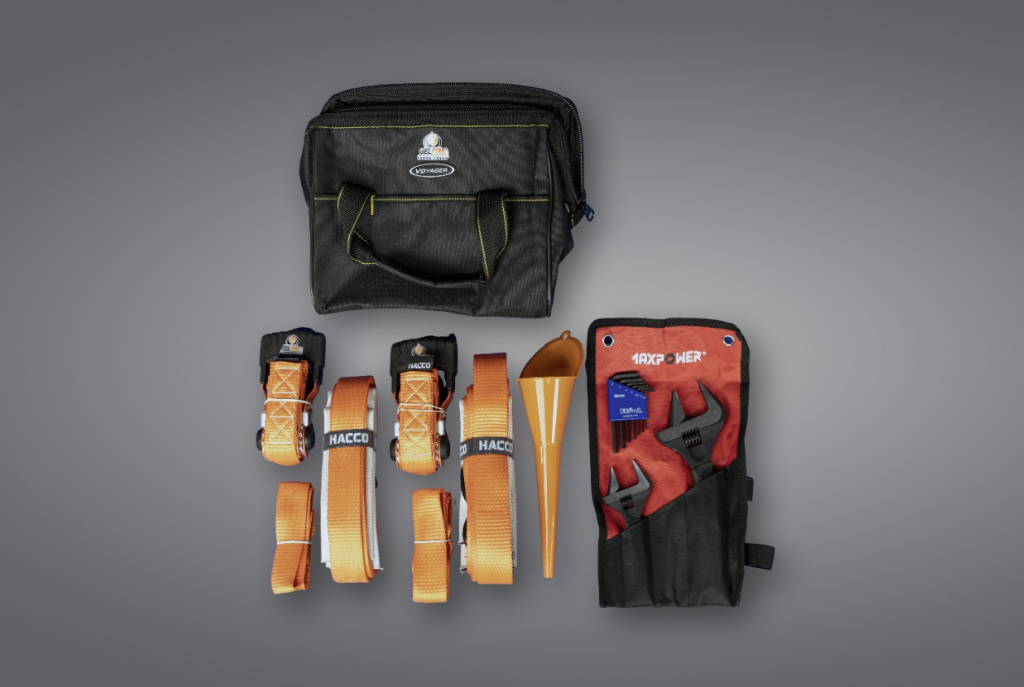

Miscellaneous ACCESSORIES

Each GelFire® Terra Torch® includes a selection of essential accessories to support routine operation, transport, setup, and field maintenance. These items are conveniently packaged and readily available when needed in the field.

Included Accessories

  • Two heavy-duty ratchet straps
  • Adjustable wrench set
  • Metric hex key (Allen wrench) set
  • Fuel funnel
  • Accessory storage bag



These practical accessories help ensure operators have the basic tools and equipment necessary for safe, efficient, and reliable operation of the Terra Torch® system.

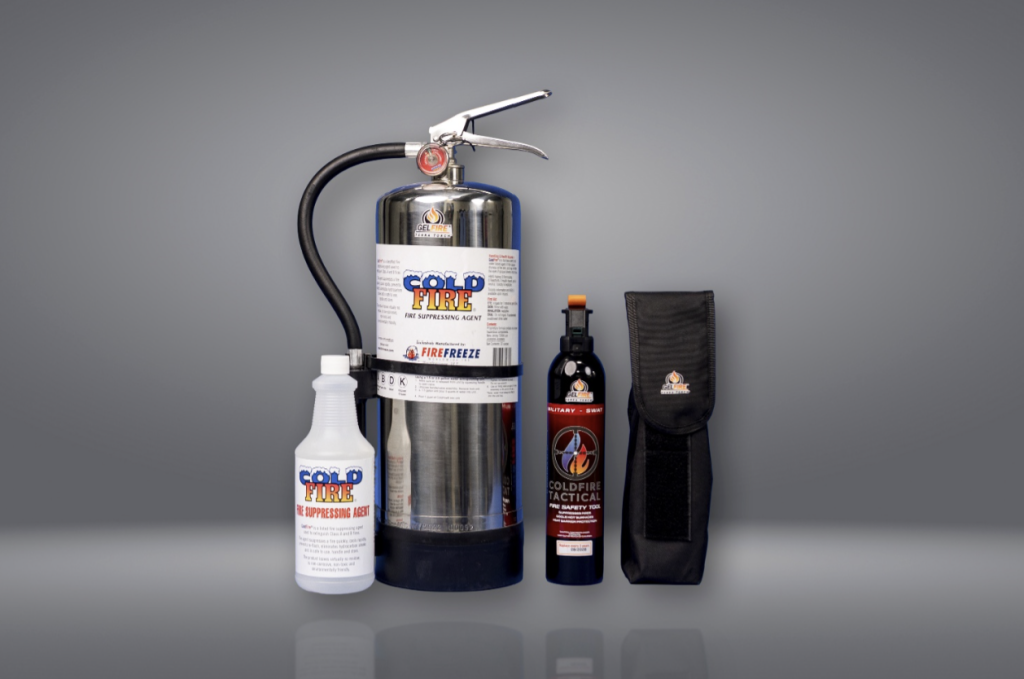

ColdFire® Extinguishers

Two ColdFire® extinguishers are included with every GelFire Terra Torch® package to enhance operational safety and provide rapid response capability during ignition operations. Compact, effective, and easy to deploy, ColdFire® extinguishers are an important component of safe fire management practices.
Additional extinguisher sizes and configurations are available to meet specific operational requirements and agency preferences.

Features

  • Two ColdFire® extinguishers included
  • Supports safe ignition and fire management operations
  • Compact and easy to deploy
  • Ideal for field use and emergency response
  • Additional sizes and configurations available
  • Complements Terra Torch® safety equipment package
REQUEST INFO

SPECIFICATIONS

DIMENSIONS:

40″W x 35″lx 36″H

FRAME:

3″, 1.5″, 1″ aluminum tube

TANK SIZE:

50 gallons

GELL FUEL CAPACITY:

40 gallons

DRY WEIGHT W/ACCESSORIES:

475lbs

GROSS WEIGHT W/ACCESSORIES:

775lbs

DIMENSIONS:

40″W x 41″lx 36″H

FRAME:

 3″, 1.5″, 1″ aluminum tube

TANK SIZE:

75 gallons

GELL FUEL CAPACITY:

65 gallons

DRY WEIGHT W/ACCESSORIES:

500lbs

GROSS WEIGHT W/ACCESSORIES::

920lbs

TANK DETAILS:

ASTM Grade B209 5052 H32

aluminum venturi educator mixing jets

MOTOR:

Honda GX160-0XE2 electric start gas motor

PUMP:

1″ brass gear pump w/12-volt electromagetic

PUMP CONTROL

on/off toggle w/volt meter

3-way mix/transfer, GelGun toggle w/indicator lights

AUXILLARY TRANSFER:

3/4″ X 48″ hard wall fuel hose

12 VOLT POWER SUPPLY

12V 20AH (fire rated) sealed

lead acid battery, M5 inserts, smart trickle charger

PLUMBING

high pressure fittings w/ss valves

GELHOSE CONNECTORS

3/4″ dry break hydraulic

GROUNDING:

vehicle grounding clamp, filling static reel

SPECIFICATIONS

SPECIFICATIONS

DIMENSIONS:

40″W x 35″lx 36″H

FRAME:

3″, 1.5″, 1″ aluminum tube

TANK SIZE:

50 gallons

GELL FUEL CAPACITY:

40 gallons

DRY WEIGHT W/ACCESSORIES:

475lbs

GROSS WEIGHT W/ACCESSORIES:

775lbs

DIMENSIONS:

40″W x 41″lx 36″H

FRAME:

 3″, 1.5″, 1″ aluminum tube

TANK SIZE:

75 gallons

GELL FUEL CAPACITY:

65 gallons

DRY WEIGHT W/ACCESSORIES:

500lbs

GROSS WEIGHT W/ACCESSORIES::

920lbs

TANK DETAILS:

ASTM Grade 8209 5052

MOTOR:

Honda GX160-0XE2 electric start gas motor

PUMP:

1″ Oberdorfer brass gear pump w/12-volt

Electromagnetic clutch

TRANSFER:

3/4″ x 48″ auxiliary draft hose

BATTERY:

12V 20AH ACM SLA

 w/M5 inserts w/12V trickle charger

GELHOSE CONNECTORS

2-3/4″ dry break hydraulic fittings

GROUNDING:

Static reel, grounding clamp

TANK DETAILS:

ASTM Grade B209 5052 H32

aluminum venturi educator mixing jets

MOTOR:

Honda GX160-0XE2 electric start gas motor

PUMP:

1″ brass gear pump w/12-volt electromagetic

PUMP CONTROL

on/off toggle w/volt meter

3-way mix/transfer, GelGun toggle w/indicator lights

AUXILLARY TRANSFER:

3/4″ X 48″ hard wall fuel hose

12 VOLT POWER SUPPLY

12V 20AH (fire rated) sealed

lead acid battery, M5 inserts, smart trickle charger

PLUMBING

high pressure fittings w/ss valves

GELHOSE CONNECTORS

3/4″ dry break hydraulic

GROUNDING:

vehicle grounding clamp, filling static reel
